Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

G13291960

Courtesy of KIA MOTORS AMERICA, INC.

G13291961

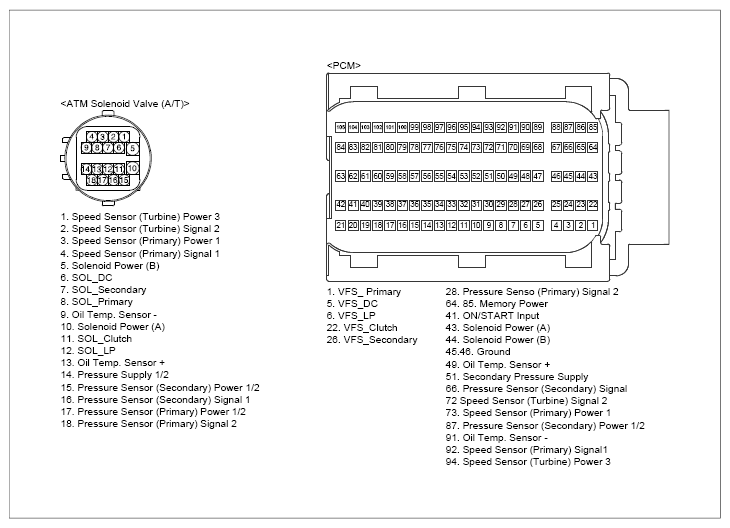

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ATM solenoid valve connector	3 (power)	Chassis ground	-	Approx. 11V
	ATM solenoid valve connector	4 (signal)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ATM solenoid valve connector	3 (power)	Chassis ground	-	∞ (infinity)Ω
	ATM solenoid valve connector	4 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

If problem still occurs, go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
