Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

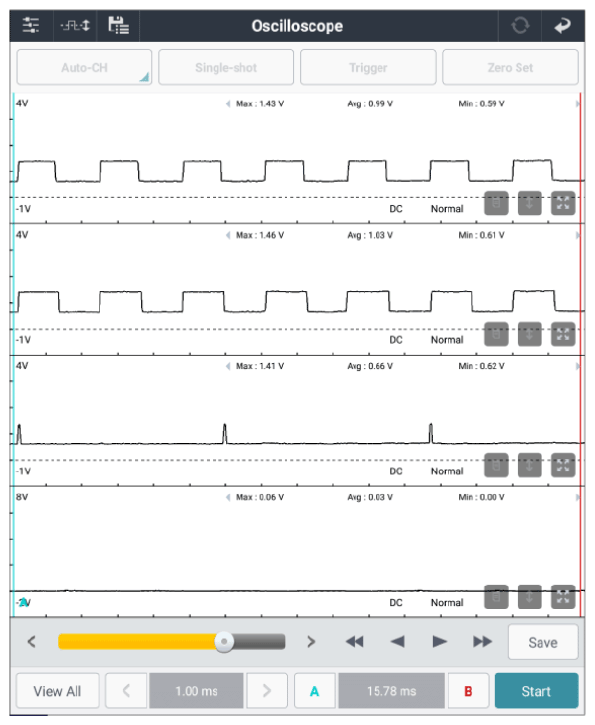

ATM solenoid valve connector | 2 (signal) | ATM solenoid valve connector | 4 (signal) | Fig.1 |
| Speed sensor (2PM output) connector | 2 (signal) | - | - | ||
|

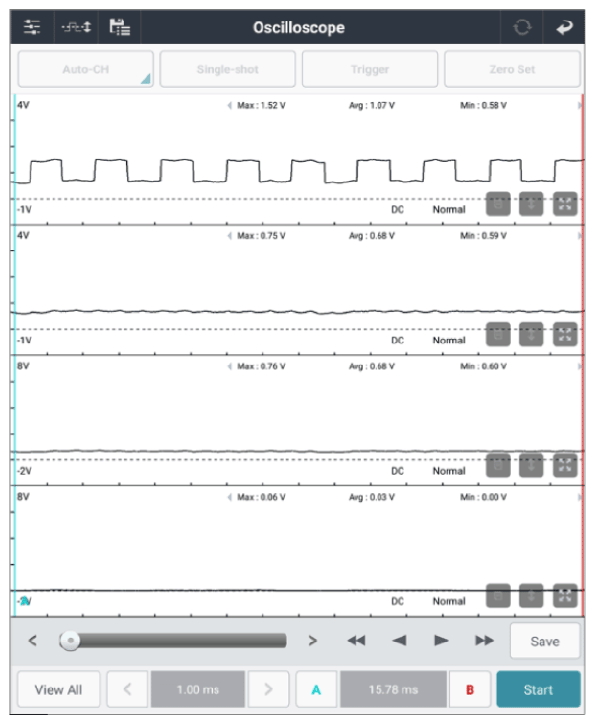

ATM solenoid valve connector | 2 (signal) | ATM solenoid valve connector | 4 (signal) | Fig.2 |
| Speed sensor (2PM output) connector | 2 (signal) | - | - | ||
Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace PCM and do "S/W Management - Oil-pressure Characteristics Back UP & Input (TCU Replacement)" and then go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- Components has bending, corrosion, contamination, deterioration, and/or damage that would be problem and go to "Verification of Repair " procedure when the component are replaced.
- Refer to "REPAIR PROCEDURES " and repair or replace the A/T (Perform the S/W Management when replace the transmission)
