Component Inspection

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Engine "ON" and no DTC.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" of concerned component with KDS.

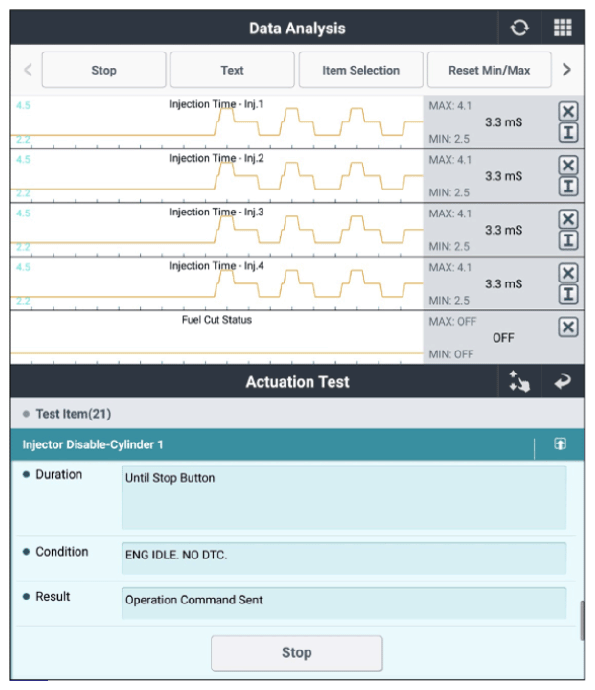

 Fig. 1
G13291491Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Reference
Connector Terminal Connector Terminal
  1. Engine "ON".
 Injector #1 connector 2 (power) Chassis ground - Fig.2
Injector #1 connector 1 (control)
G13291492Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the injector#1 and go to "Verification of Repair " procedure.
