Circuit Inspection

WARNING: This page is about a different variant/trim than selected.
G13291384Courtesy of KIA MOTORS AMERICA, INC.

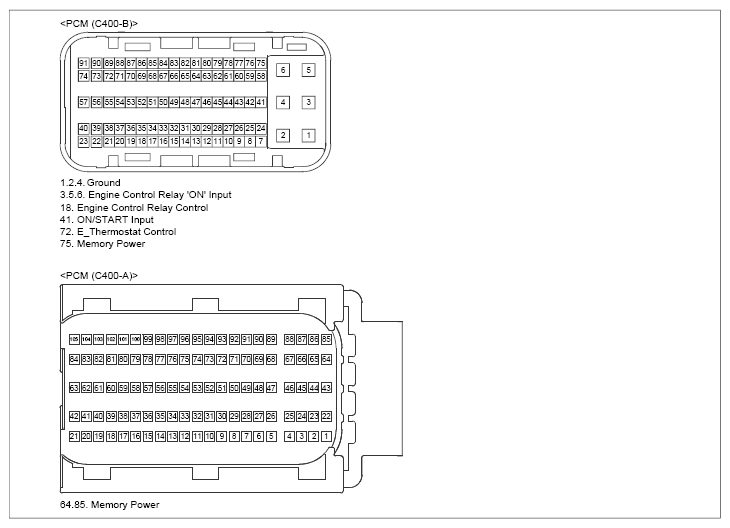

G13291385Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 Thermostat connector 1 (power) Chassis ground - B+
Thermostat connector 2 (control) Chassis ground - Approx. 0.87V

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair or replace as necessary and then go to "Verification of Repair " procedure.
