Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

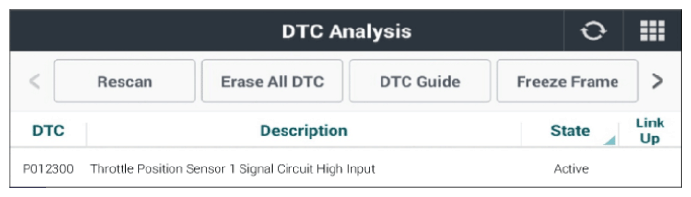

 Fig.1
G13291369Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "Monitor KDS Data " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
