Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

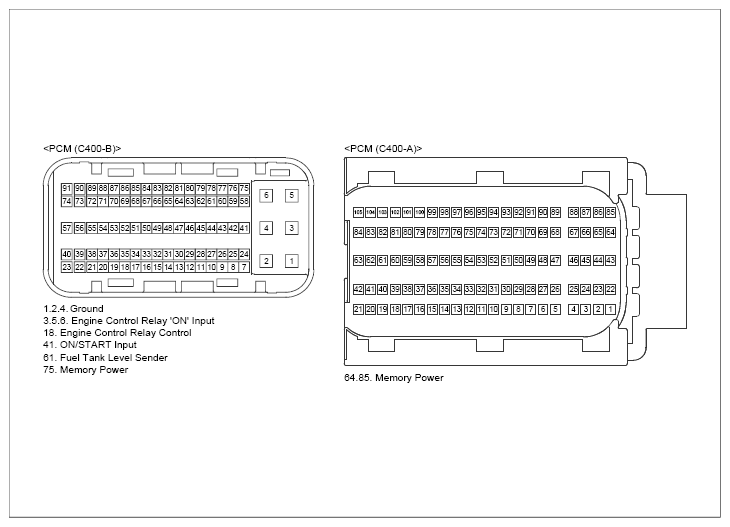

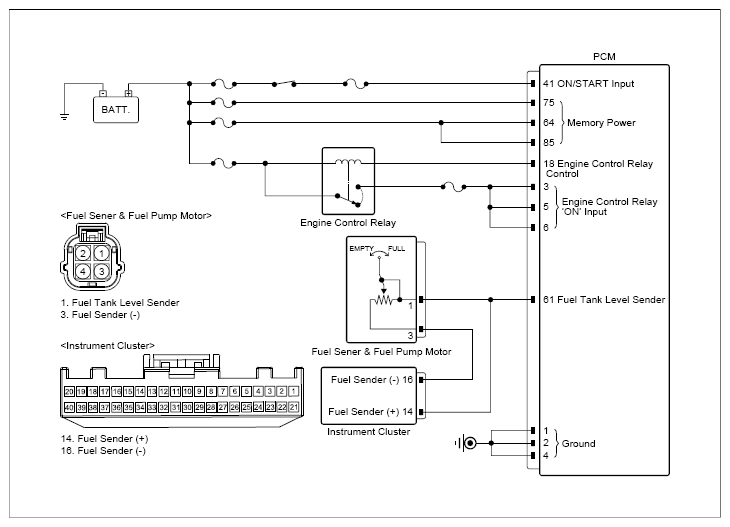

Fuel sender & fuel pump motor connector | 3 (fuel sender -) | Chassis ground | - | Approx. 0V |
| Fuel sender & fuel pump motor connector | 1 (fuel sender +) | Chassis ground | - | Approx. 11.1V | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
