Starter Brush Holder Test
WARNING: This page is about a different variant/trim than selected.

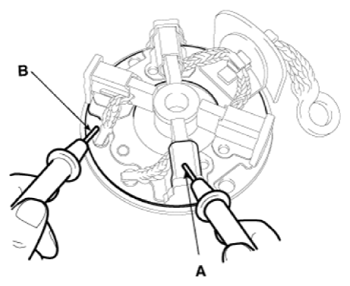

Make sure there is no continuity between the (+) brush holder (A) and (-) plate (B). If there is continuity, replace the brush holder assembly.
 Courtesy of KIA MOTORS AMERICA, INC.
|
