Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

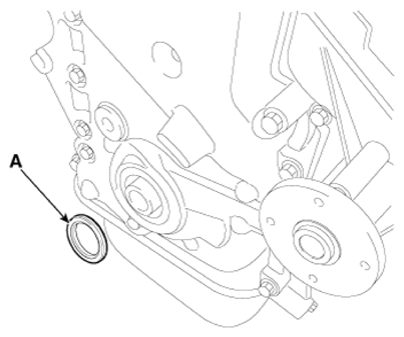

  2. Remove the front oil seal (A).
    G13283568Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply engine oil on the edge of new oil seal.
    NOTE: Remove any debris from the lip portion of the oil seal.

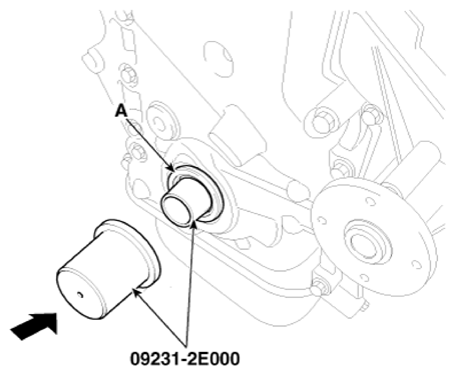

  4. Using the SST (09231-2E000), install a front oil seal (A).
    G13283569Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Always use a new front oil seal.
  5. Install the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")
