Repair Procedures: Removal

Information

• Mark all wiring and hoses to avoid misconnection.
• Turn the crankshaft pulley so that the No. 1 piston is at top dead center.

Timing chain cover removal is not required for this procedure.

1. Remove the cylinder head cover.

   (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

2. Remove the variable force solenoid (VFS) valve (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. Set No. 1 cylinder to TDC (Top dead center) on compression stroke.
   1. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover.

      Courtesy of KIA MOTORS AMERICA, INC.

   2. Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft by one revolution (360°) more.

      Courtesy of KIA MOTORS AMERICA, INC.

   3. Mark the timing chains corresponding to the timing marks of the CVVT sprockets.

      Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the crankshaft damper pulley.

   (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

5. Remove the service plug bolt (A) with the gasket (B).

   Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the tensioner arm bolt (A).

   Courtesy of KIA MOTORS AMERICA, INC.

7. Push down the tensioner arm (A). [Timing Cover off For illustration Only]

   Courtesy of KIA MOTORS AMERICA, INC.

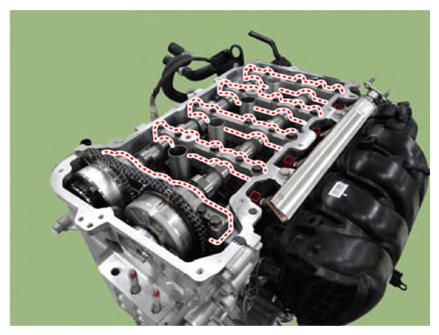

8. Remove the camshaft bearing caps.

   Courtesy of KIA MOTORS AMERICA, INC.

9. Remove the exhaust camshaft (A) first, then intake camshaft (B).

   Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the tensioner arm (A).

    Courtesy of KIA MOTORS AMERICA, INC.

    Information

    To hold the timing chain, tie it with strap.

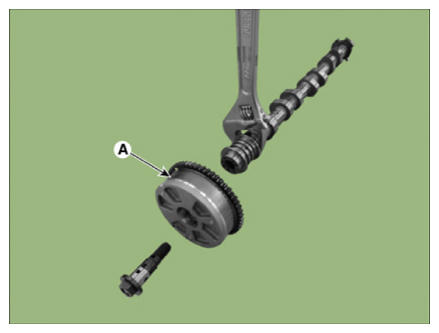

11. Remove the CVVT assembly (A) from the camshaft.

    [Intake]

    Courtesy of KIA MOTORS AMERICA, INC.

    [Exhaust]

    Courtesy of KIA MOTORS AMERICA, INC.

    Information

    When removing the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft from rotating.
