Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn OFF ignition switch and disconnect the negative (-) battery cable.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")

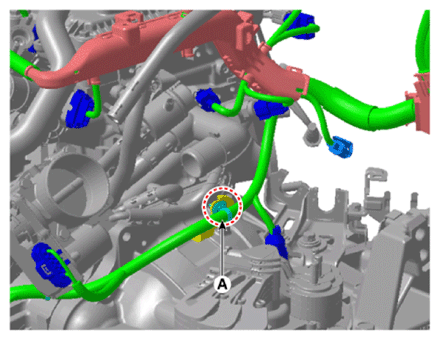

Disconnect the back-up lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the snap pin (A) and then washer (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the select cable (A), shift cable (B) from the cable bracket (C).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the bolts and then removing the control cable bracket (A).
Tightening torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring clips (A) from the bracket.
Disconnect the neutral switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the ground bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

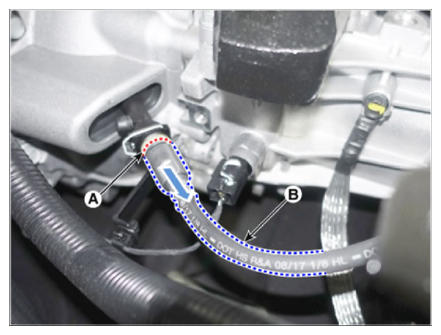

Disconnect the clutch tube (B) after removing the clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

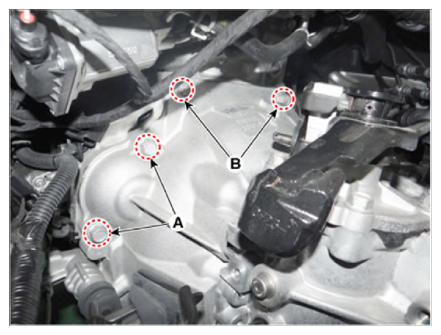

Remove the starter mounting bolt (A) and then transaxle upper mounting bolt (B).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")
Assemble the engine support fixture on the engine room.
(Refer to - " ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")
Using the engine support fixture, hold the engine and transaxle assembly safely.

Courtesy of KIA MOTORS AMERICA, INC.

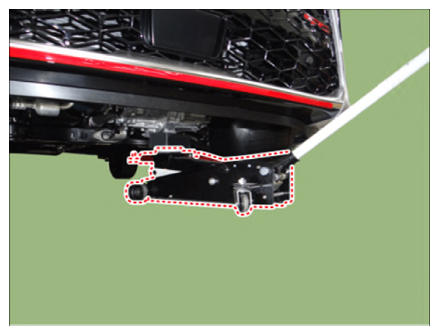

Support the transaxle safely on a jack.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard [LH].
(Refer to Body - "FRONT WHEEL GUARD ")

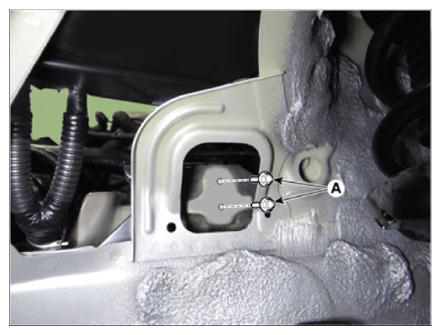

Remove the mounting bolts (A) from the transaxle support bracket.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

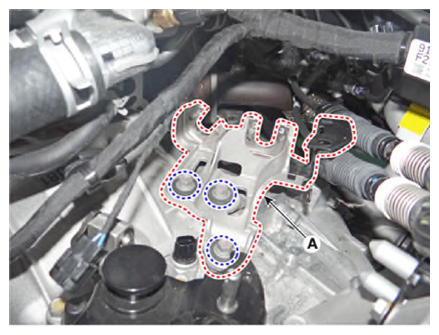

Remove the transaxle support bracket (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the driveshaft assembly.
(Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")
Remove the air guide.

Courtesy of KIA MOTORS AMERICA, INC.

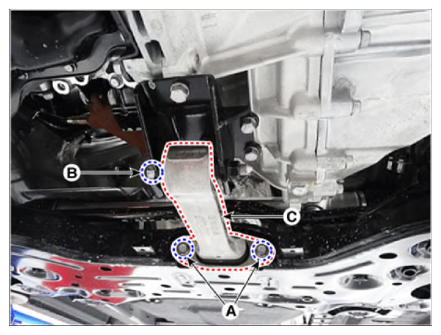

Remove the roll rod bracket (C) after loosening the bolt (A), (B).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
2. 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.1 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

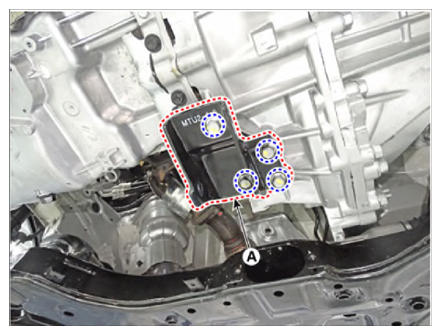

Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

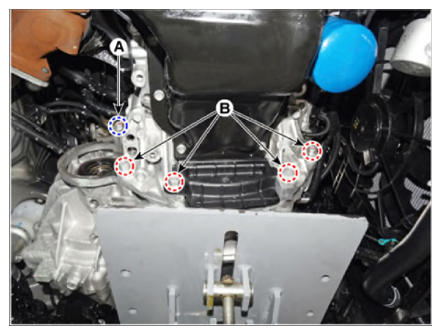

Loosen the lower mounting bolts (A, B) of lower part of the transaxle and then removing the transaxle assembly by supporting it with a jack.
Tightening torque:
1. 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
2. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)
  NOTE: Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.
Courtesy of KIA MOTORS AMERICA, INC.
