Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

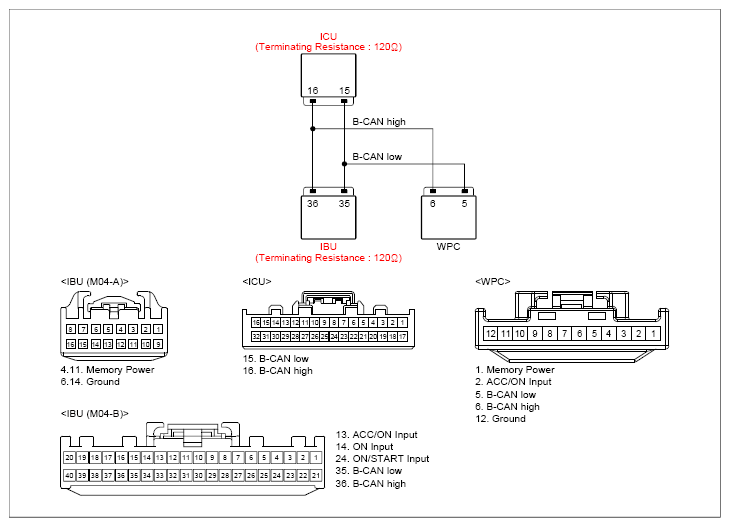

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
WPC | 1, 2 (power) | Chassis ground | - | B+ |
|
WPC | 12 (ground) | Chassis ground | - | Approx. below 1Ω |
|

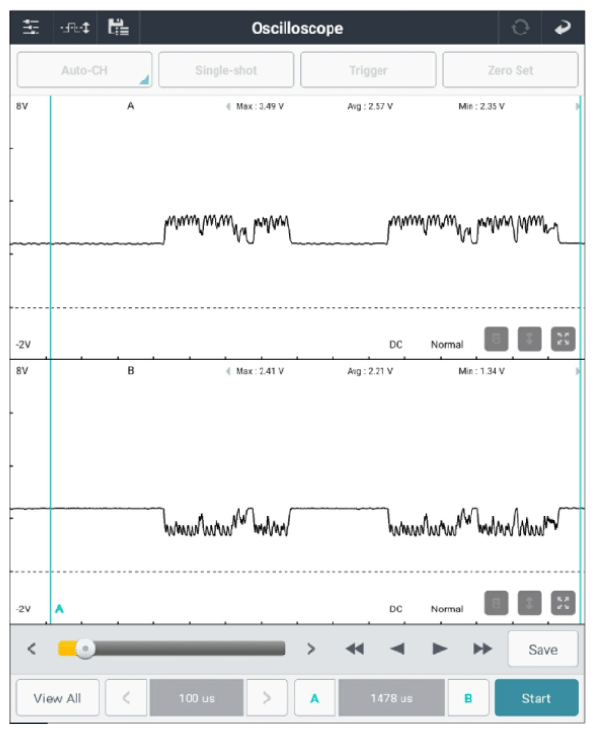

WPC | 6 (B-CAN high) | Chassis ground | - | Fig.1 |
| WPC | 5 (B-CAN low) | Chassis ground | - | ||
|
ICU | 16 (B-CAN high) | ICU | 15 (B-CAN low) | Approx. 60Ω |
| WPC | 6 (B-CAN high) | WPC | 5 (B-CAN low) | Approx. 60Ω | |
| ICU | 16 (B-CAN high) | WPC | 6 (B-CAN high) | Approx. below 1Ω | |
| ICU | 15 (B-CAN low) | WPC | 5 (B-CAN low) | Approx. below 1Ω | |
| ICU (component side) | 16 (B-CAN high) | ICU (component side) | 15 (B-CAN low) | Approx. 120Ω | |
| IBU (component side) | 36 (B-CAN high) | IBU (component side) | 35 (B-CAN low) | Approx. 120Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
