Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284456Courtesy of KIA MOTORS AMERICA, INC.

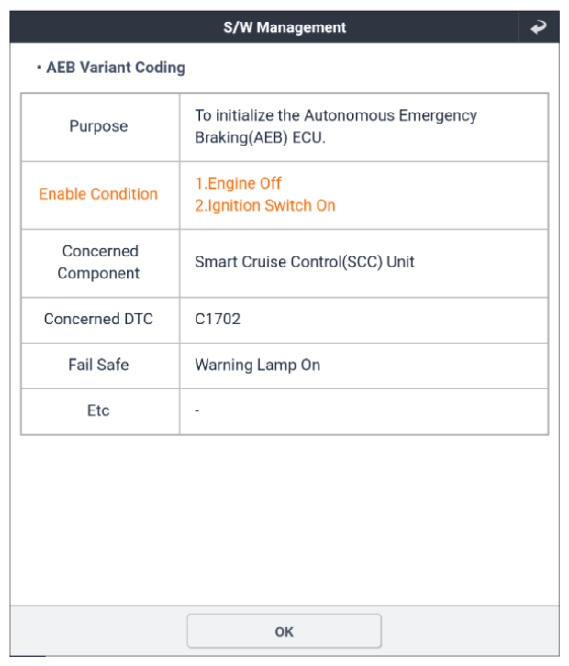

G13284457Courtesy of KIA MOTORS AMERICA, INC.
G13284458Courtesy of KIA MOTORS AMERICA, INC.

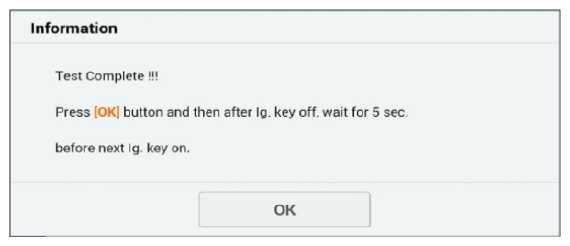

G13284459Courtesy of KIA MOTORS AMERICA, INC.
G13284460Courtesy of KIA MOTORS AMERICA, INC.
G13284461Courtesy of KIA MOTORS AMERICA, INC.
G13284462Courtesy of KIA MOTORS AMERICA, INC.
G13284463Courtesy of KIA MOTORS AMERICA, INC.
G13284464Courtesy of KIA MOTORS AMERICA, INC.
