Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284420Courtesy of KIA MOTORS AMERICA, INC.

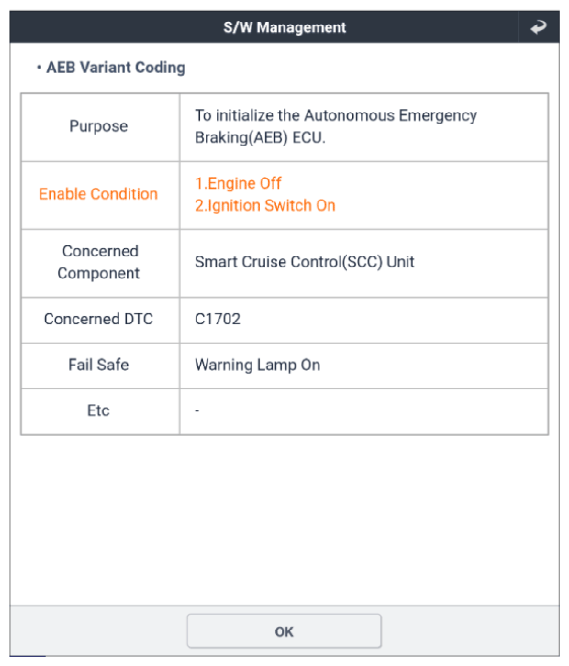

G13284421Courtesy of KIA MOTORS AMERICA, INC.

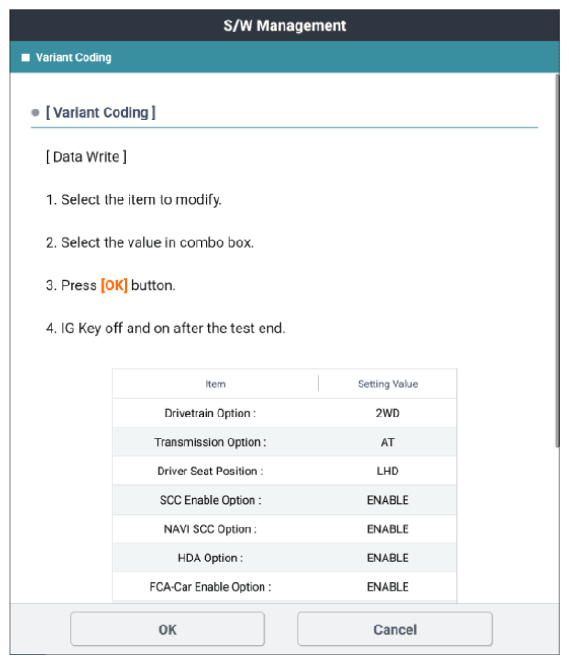

G13284422Courtesy of KIA MOTORS AMERICA, INC.
G13284423Courtesy of KIA MOTORS AMERICA, INC.
G13284424Courtesy of KIA MOTORS AMERICA, INC.
G13284425Courtesy of KIA MOTORS AMERICA, INC.
G13284426Courtesy of KIA MOTORS AMERICA, INC.
G13284427Courtesy of KIA MOTORS AMERICA, INC.

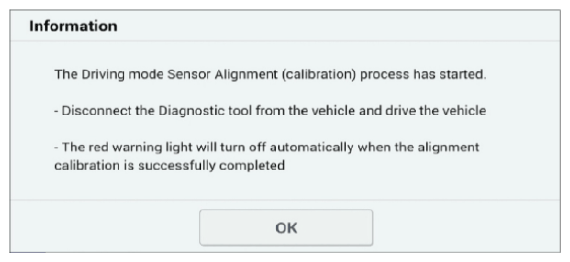

G13284428Courtesy of KIA MOTORS AMERICA, INC.
