Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284394Courtesy of KIA MOTORS AMERICA, INC.

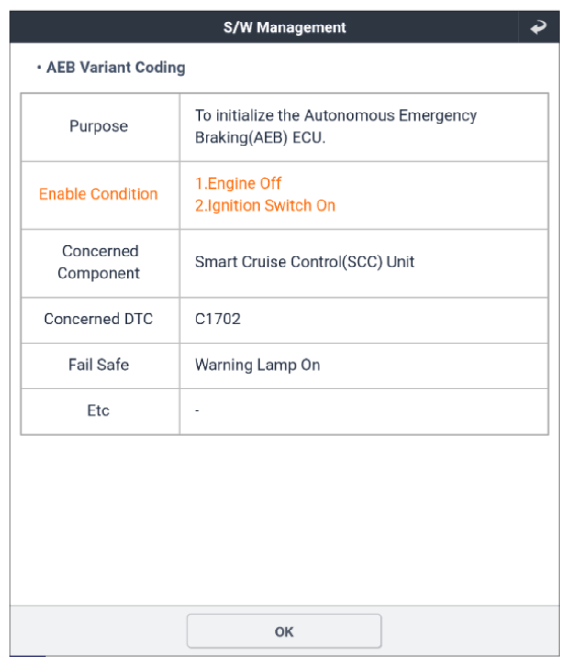

G13284395Courtesy of KIA MOTORS AMERICA, INC.

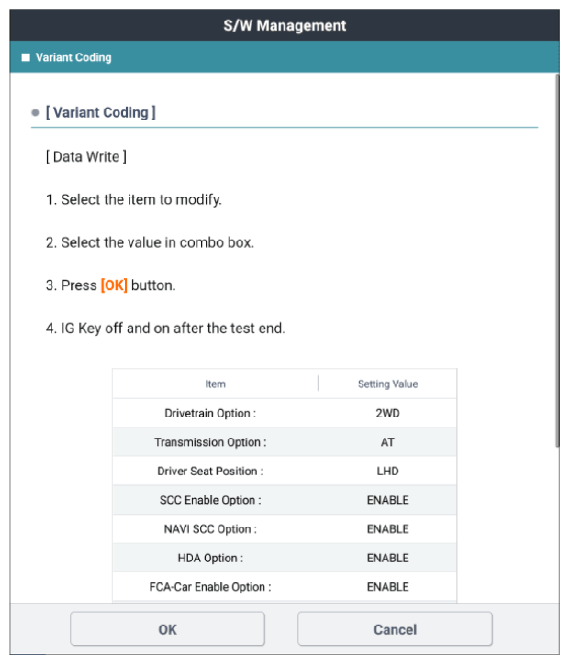

G13284396Courtesy of KIA MOTORS AMERICA, INC.
G13284397Courtesy of KIA MOTORS AMERICA, INC.
G13284398Courtesy of KIA MOTORS AMERICA, INC.
G13284399Courtesy of KIA MOTORS AMERICA, INC.
G13284400Courtesy of KIA MOTORS AMERICA, INC.
G13284401Courtesy of KIA MOTORS AMERICA, INC.
G13284402Courtesy of KIA MOTORS AMERICA, INC.
