Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284381Courtesy of KIA MOTORS AMERICA, INC.
G13284382Courtesy of KIA MOTORS AMERICA, INC.

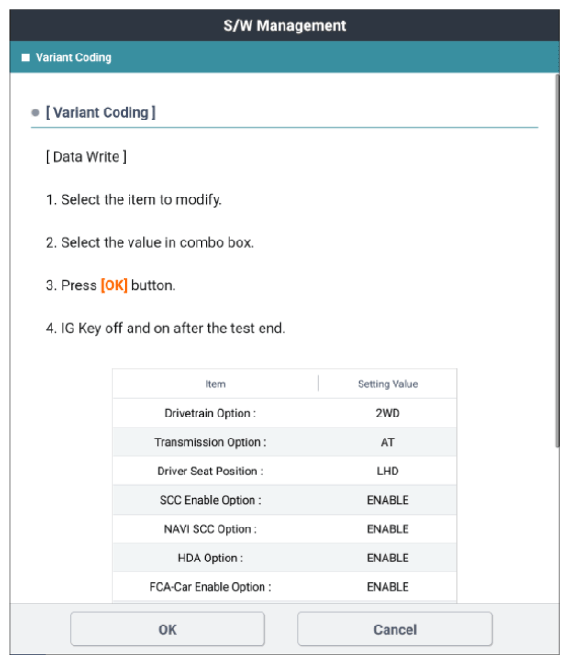

G13284383Courtesy of KIA MOTORS AMERICA, INC.
G13284384Courtesy of KIA MOTORS AMERICA, INC.
G13284385Courtesy of KIA MOTORS AMERICA, INC.
G13284386Courtesy of KIA MOTORS AMERICA, INC.
G13284387Courtesy of KIA MOTORS AMERICA, INC.
G13284388Courtesy of KIA MOTORS AMERICA, INC.
G13284389Courtesy of KIA MOTORS AMERICA, INC.
