Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284302Courtesy of KIA MOTORS AMERICA, INC.

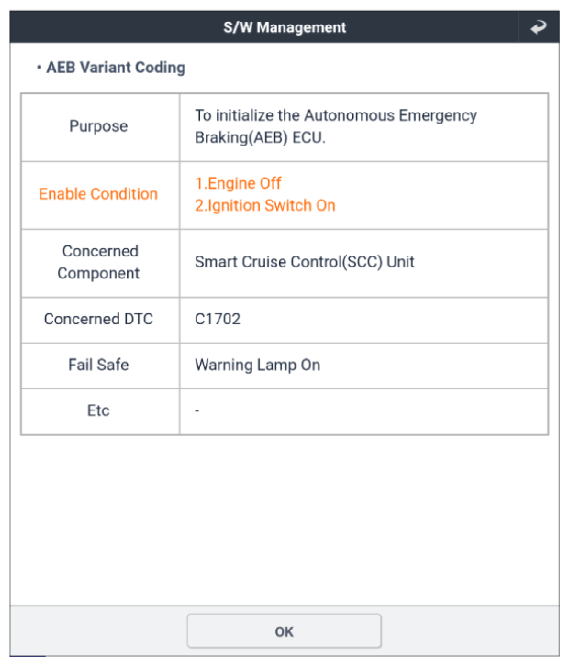

G13284303Courtesy of KIA MOTORS AMERICA, INC.
G13284304Courtesy of KIA MOTORS AMERICA, INC.

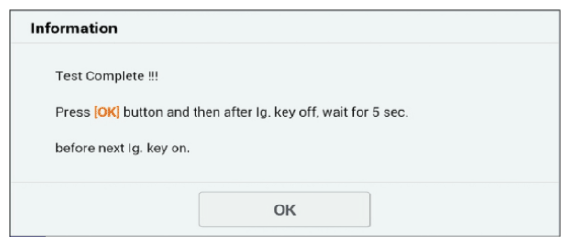

G13284305Courtesy of KIA MOTORS AMERICA, INC.
G13284306Courtesy of KIA MOTORS AMERICA, INC.
G13284307Courtesy of KIA MOTORS AMERICA, INC.
G13284308Courtesy of KIA MOTORS AMERICA, INC.

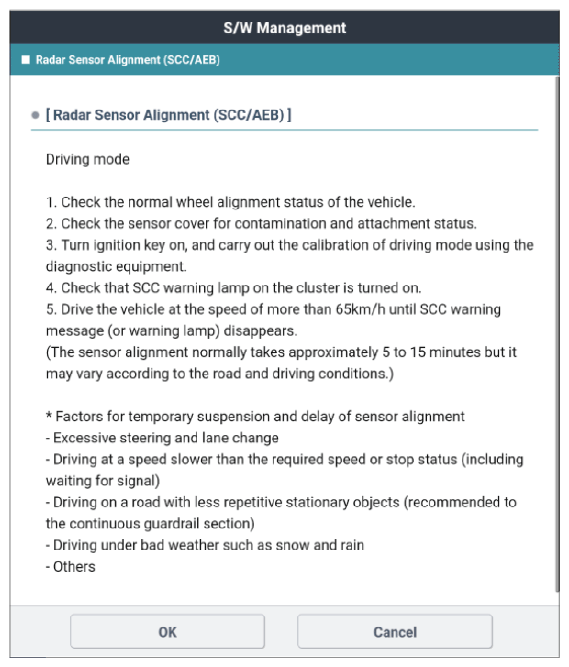

G13284309Courtesy of KIA MOTORS AMERICA, INC.
G13284310Courtesy of KIA MOTORS AMERICA, INC.
