Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284254Courtesy of KIA MOTORS AMERICA, INC.

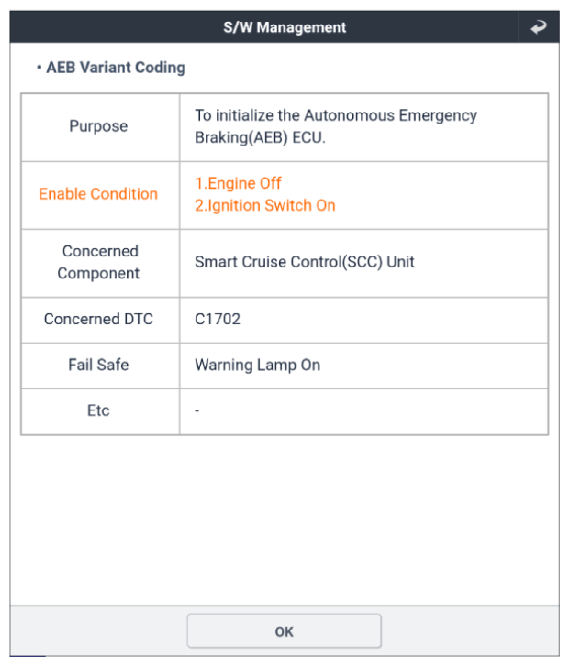

G13284255Courtesy of KIA MOTORS AMERICA, INC.
G13284256Courtesy of KIA MOTORS AMERICA, INC.
G13284257Courtesy of KIA MOTORS AMERICA, INC.
G13284258Courtesy of KIA MOTORS AMERICA, INC.
G13284259Courtesy of KIA MOTORS AMERICA, INC.
G13284260Courtesy of KIA MOTORS AMERICA, INC.

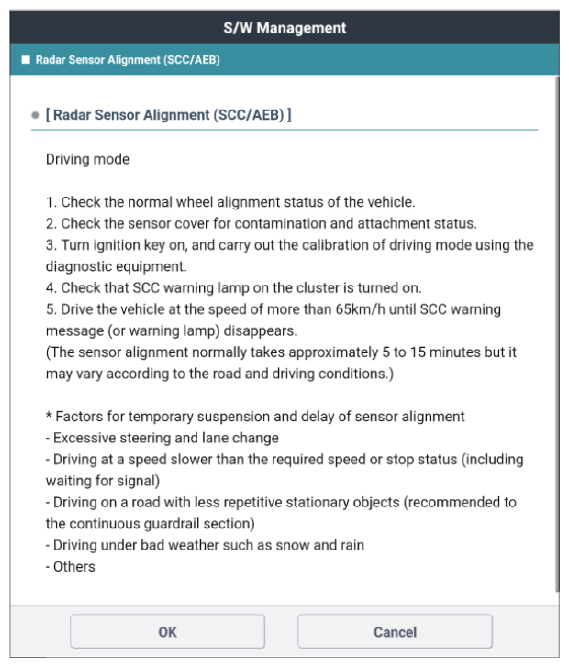

G13284261Courtesy of KIA MOTORS AMERICA, INC.
G13284262Courtesy of KIA MOTORS AMERICA, INC.
