Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
G13284186Courtesy of KIA MOTORS AMERICA, INC.

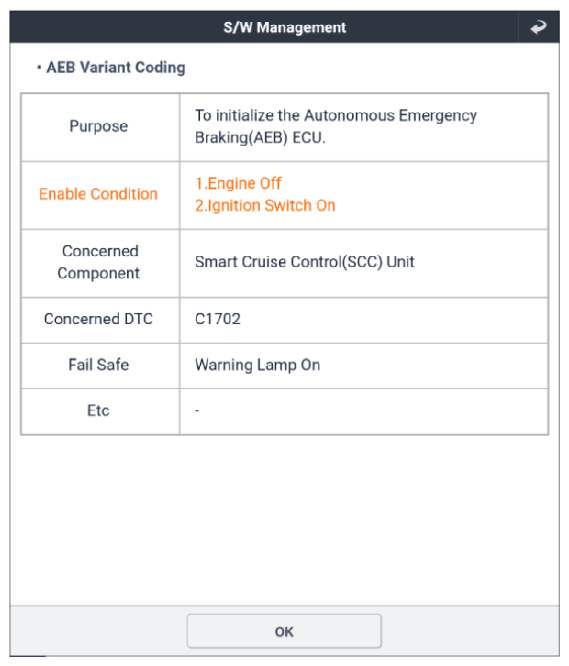

G13284187Courtesy of KIA MOTORS AMERICA, INC.
G13284188Courtesy of KIA MOTORS AMERICA, INC.
G13284189Courtesy of KIA MOTORS AMERICA, INC.
G13284190Courtesy of KIA MOTORS AMERICA, INC.
G13284191Courtesy of KIA MOTORS AMERICA, INC.

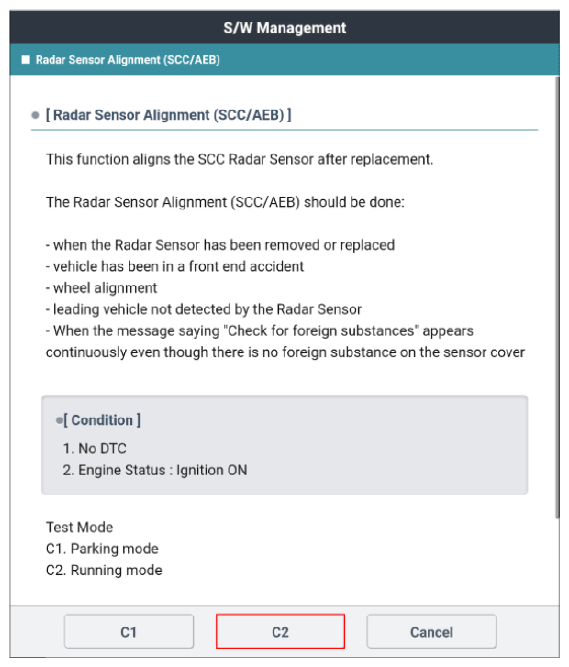

G13284192Courtesy of KIA MOTORS AMERICA, INC.
G13284193Courtesy of KIA MOTORS AMERICA, INC.

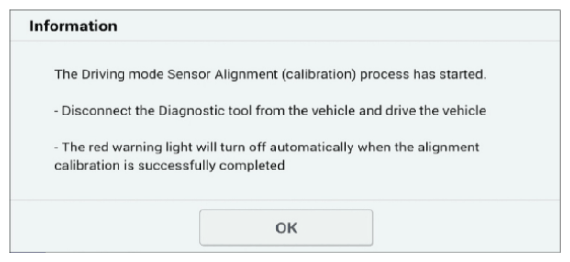

G13284194Courtesy of KIA MOTORS AMERICA, INC.
