Component Location

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

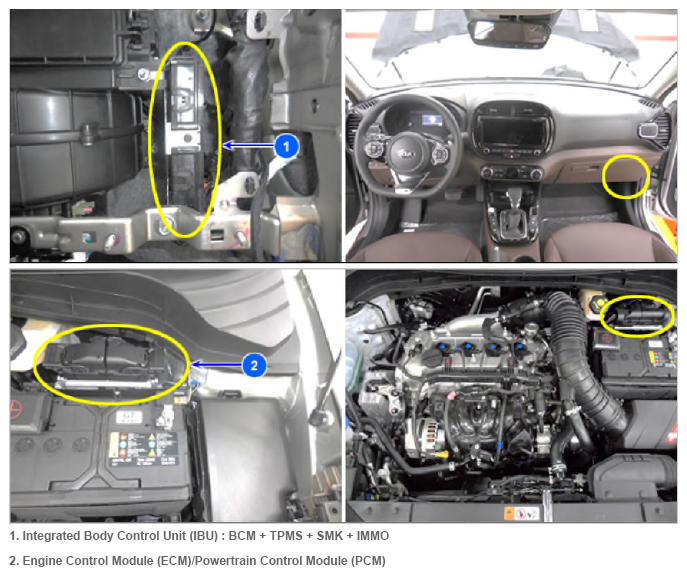

G13289360Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Body Control Module (BCM)
Tire Pressure Monitoring System (TPMS)
Smart Key (SMK)
Immobilizer (IMMO)
