Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

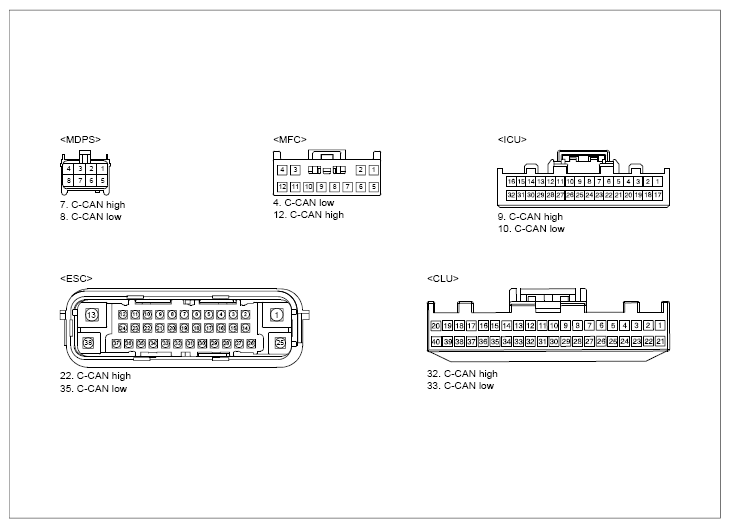

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	ICU connector	9 (C-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	ICU connector	10 (C-CAN low)	Chassis ground	-	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "CAN Inspection" procedure.

No Good

Repair as necessary and then go to "Verification of Repair " procedure.

CAN Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" and disconnect the battery (-) terminal. Disconnect the electrical connector (s) from the concerned component.	MDPS unit connector	7 (C-CAN high)	MDPS unit connector	8 (C-CAN low)	Approx. 60Ω

Good

Go to "Component Inspection " procedure.

No Good

Repair as necessary and then go to "Verification of Repair " procedure.
