Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor(SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

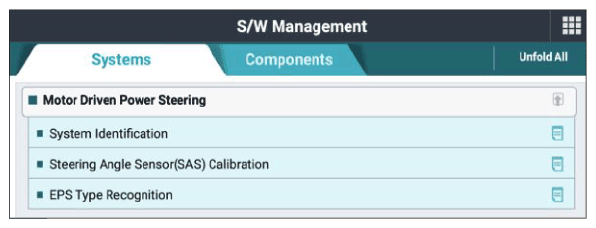

G13289448Courtesy of KIA MOTORS AMERICA, INC.

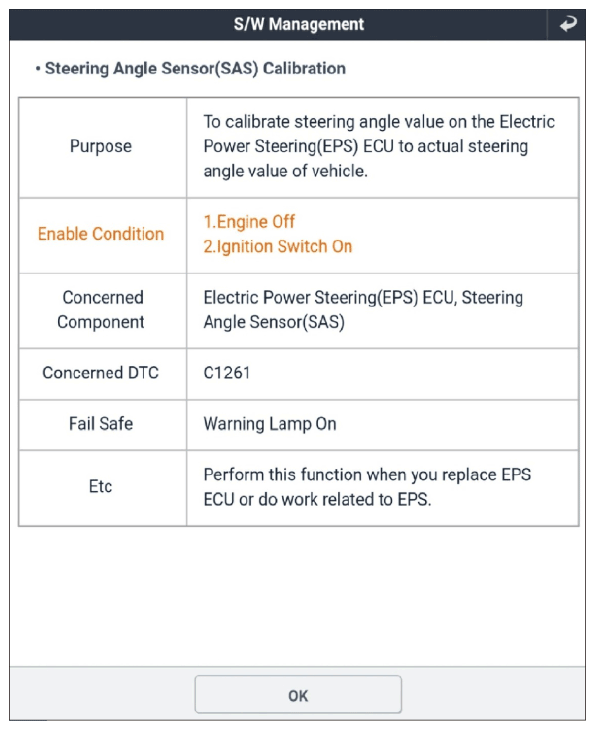

G13289449Courtesy of KIA MOTORS AMERICA, INC.
G13289450Courtesy of KIA MOTORS AMERICA, INC.
G13289451Courtesy of KIA MOTORS AMERICA, INC.
