Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor(SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4
G13289431Courtesy of KIA MOTORS AMERICA, INC.
G13289432Courtesy of KIA MOTORS AMERICA, INC.

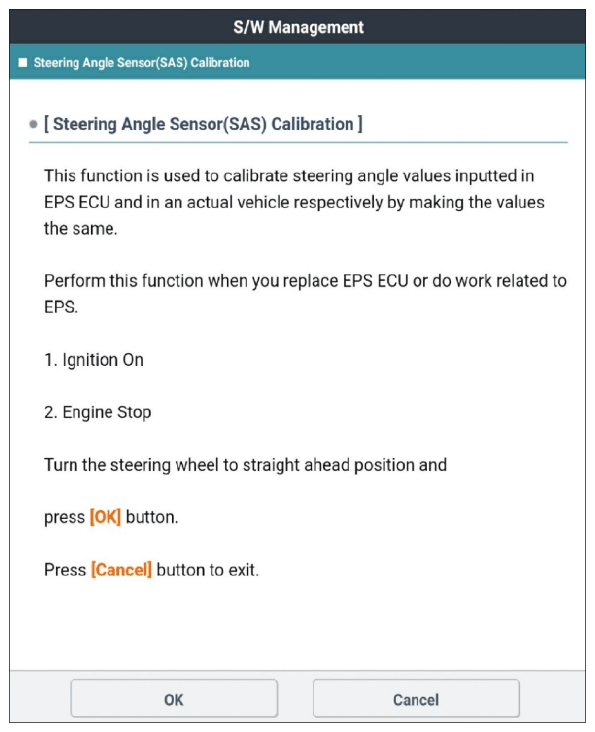

G13289433Courtesy of KIA MOTORS AMERICA, INC.
G13289434Courtesy of KIA MOTORS AMERICA, INC.
