Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

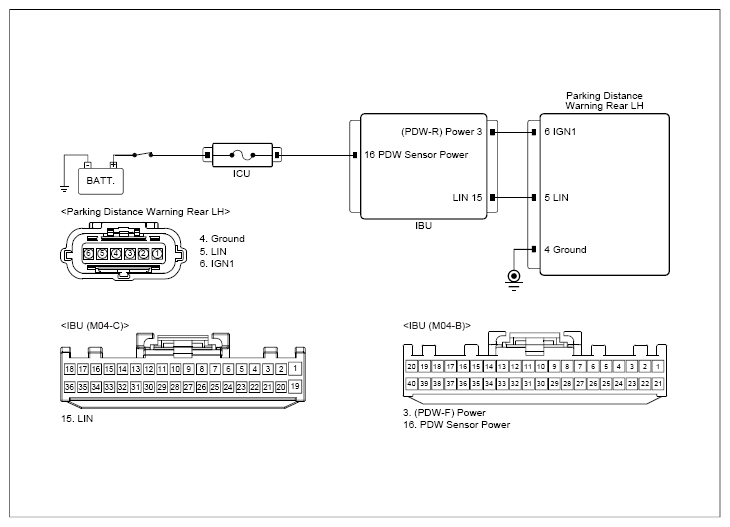

G13288405Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 PDW rear LH connector 6 (ignition1) IBU connector 3 (PDW-R power) Approx. below 1Ω
PDW rear LH connector 4 (ground) Chassis ground - Approx. below 1Ω
  1. Engine "ON".
  2. Gear "R".
 PDW rear LH connector 5 (LIN) Chassis ground - Fig. 1
G13288406Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair as necessary, go to "Verification of Repair " procedure.
