Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
G13291503Courtesy of KIA MOTORS AMERICA, INC.

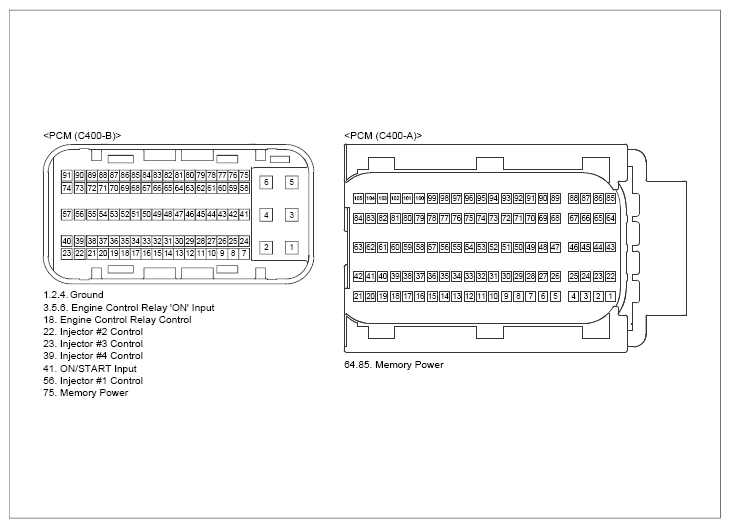

G13291504Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect injector #3 connector.
  3. Ignition "ON".
 Injector #3 connector 2 (power) Chassis ground - Approx. 12V
  1. Ignition "OFF".
  2. Disconnect injector #3 connector.
  3. Ignition "ON".
 Injector #3 connector 1 (control) Chassis ground - Approx. 5.76V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 Injector #3 connector 1 (control) Injector #3 connector 2 (power) ∞ (infinity)Ω

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair or replace as necessary and then go to "Verification of Repair " procedure.
