Monitor DTC Status

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

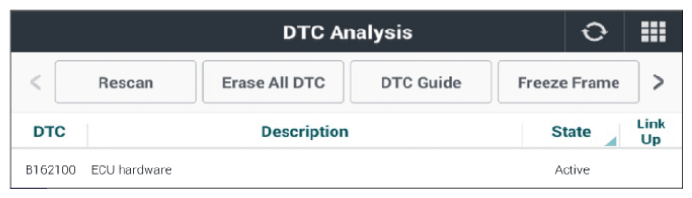

 Fig.1
G13291174Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to next procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
