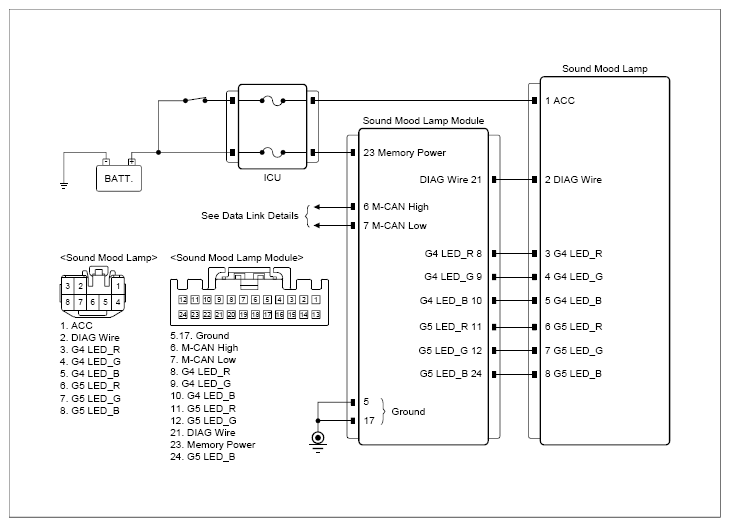

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Glove box lower sound mood lamp | 1 (power) | Chassis ground | - | B+ |
|
Glove box lower sound mood lamp | 3 (G4 LED red) | SML | 8 (G4 LED red) | Approx. below 1Ω |
| Glove box lower sound mood lamp | 4 (G4 LED green) | SML | 9 (G4 LED green) | Approx. below 1Ω | |
| Glove box lower sound mood lamp | 5 (G4 LED blue) | SML | 10 (G4 LED blue) | Approx. below 1Ω | |
| Glove box lower sound mood lamp | 6 (G5 LED red) | SML | 11 (G5 LED red) | Approx. below 1Ω | |
| Glove box lower sound mood lamp | 7 (G5 LED green) | SML | 12 (G5 LED green) | Approx. below 1Ω | |
| Glove box lower sound mood lamp | 8 (G5 LED blue) | SML | 24 (G5 LED blue) | Approx. below 1Ω | |
| Glove box lower sound mood lamp | 2 (DIAG wire) | SML | 21 (DIAG wire) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage, and carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the SML and go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the glove box lower sound mood lamp and go to "Verification of Repair " procedure.
