Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

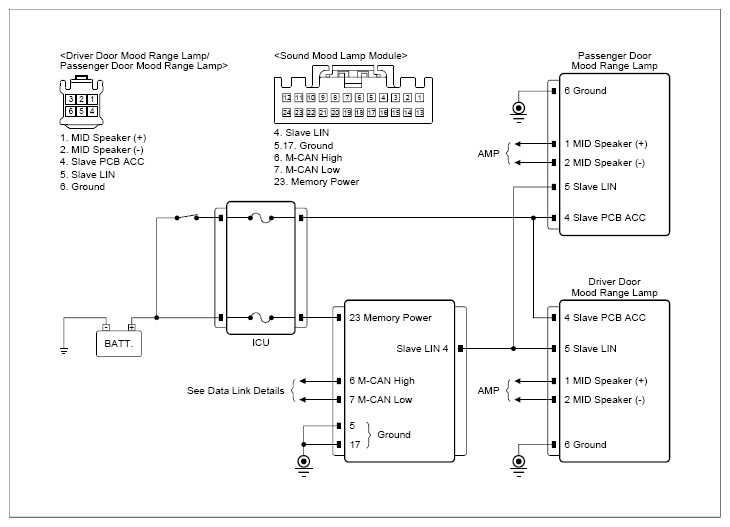

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Door mood range lamp LH/RH | 4 (power) | Chassis ground | - | B+ |

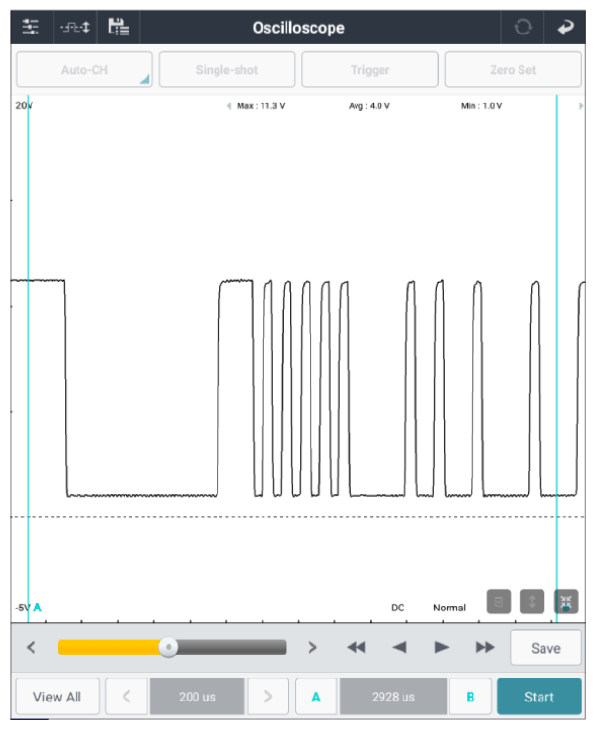

| Door mood range lamp LH/RH | 5 (LIN) | Chassis ground | - | Fig.1 | |
|
Door mood range lamp LH/RH | 6 (ground) | Chassis ground | - | Approx. below 1Ω |
| Door mood range lamp LH/RH | 5 (LIN) | Sound mood lamp module | 4 (LIN) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage, and carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the SML and go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the door sound mood lamp and go to "Verification of Repair " procedure.
