Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

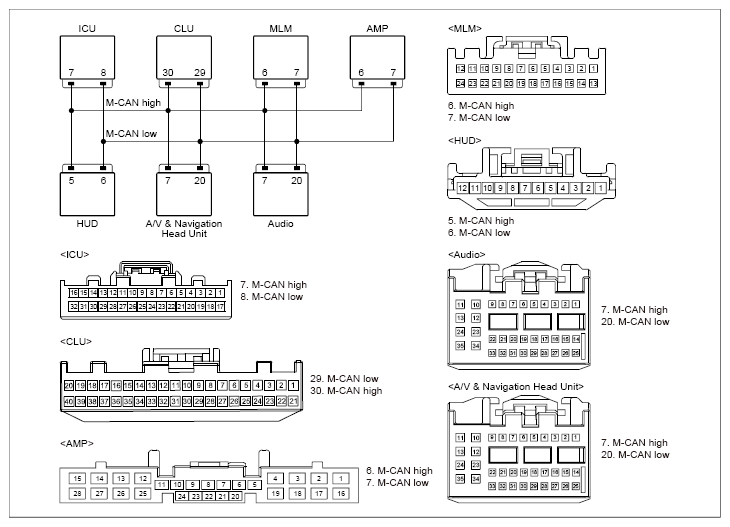

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
SML | 23 (power) | Chassis ground | - | B+ |
| SML | 5, 17 (ground) | Chassis ground | - | Approx. 0V | |
|
SML | 6 (M-CAN high) | Chassis ground | - | Fig.1 |
| SML | 7 (M-CAN low) | Chassis ground | - | ||
|
SML | 6 (M-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| SML | 7 (M-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| SML | 6 (M-CAN high) | ICU | 7 (M-CAN high) | Approx. below 1Ω | |
| SML | 7 (M-CAN low) | ICU | 8 (M-CAN low) | Approx. below 1Ω | |
Good
- Remove each unit or module connector that constitutes the M-CAN communication network, and check if the DTC is cleared.
- If a steady value is measured when the connector is removed, check the grounding short of the respective component and communication line.
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
No Good
- If the voltage of the measured waveform is at the approx. 12V, check for short circuit to battery.
- If the voltage of the measured waveform is at the approx. 0V, check for short circuit to ground.
- Check the circuit open or connector disconnection.
- Check for a short circuit between the wiring and the chassis ground.
- Perform repair or replacement as necessary and perform the "Verification of Repair " procedure.
