Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the alternator.

    (Refer to Charging System - "ALTERNATOR ")

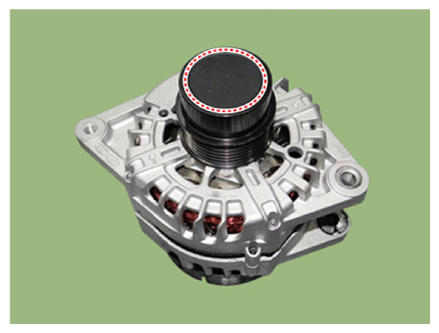

  2. Remove the OAD (Overrunning Alternator Decoupler) cap (A).
    G13280681Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When installing, replace with new OAD cap.
  3. Remove the OAD(Overrunning Alternator Decoupler) pulley (A) using the special tool.
    G13280682Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the rear cover (A) after removing nuts.
    G13280683Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the mounting bolts (A) and the regulator assembly (B).
    G13280684Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the slip ring guide (A) after pulling it.
    G13280685Courtesy of KIA MOTORS AMERICA, INC.
  7. Unsolder the 3 stator leads (A).
    G13280686Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the 4 through bolts (A).
    G13280687Courtesy of KIA MOTORS AMERICA, INC.
  9. Disconnect the rotor (A) and bracket (B).
    G13280688Courtesy of KIA MOTORS AMERICA, INC.
