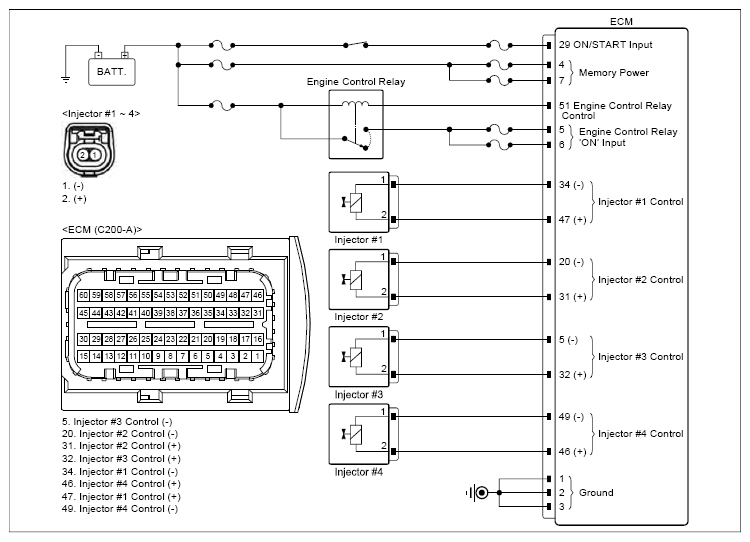

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|
Injector #2 connector | 1 (-) | Chassis ground | - | Approx. 0V |
| Injector #2 connector | 2 (+) | Chassis ground | - | Approx. 8V | |
|
Injector #2 connector | 1 (-) | ECM connector | 20 (-) | Approx. below 1Ω |
| Injector #2 connector | 2 (+) | ECM connector | 31 (+) | Approx. below 1Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then, go to "Verification of Repair " procedure.
