Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the fuel sender connector (A).
    G13280965Courtesy of KIA MOTORS AMERICA, INC.

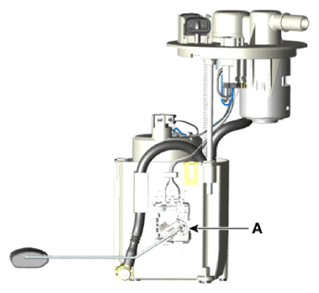

  3. Remove the fuel sender (A).
    G13280966Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
