Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear bumper assembly.
(Refer to Rear Bumper - "REAR BUMPER ASSEMBLY ")

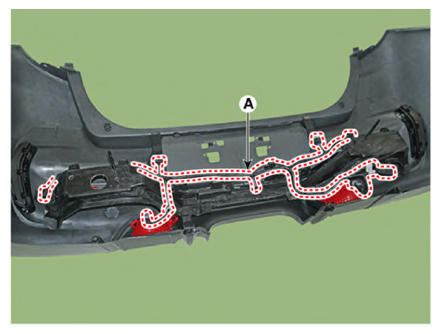

Disconnect the rear bumper beam mounting wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.

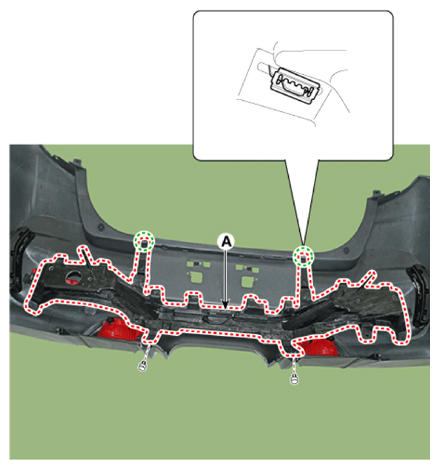

After loosening the mounting clips, remove the rear bumper beam assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.

Make sure the connector is plugged in properly.
Replace any damaged clips (or pin-type retainers).
