Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

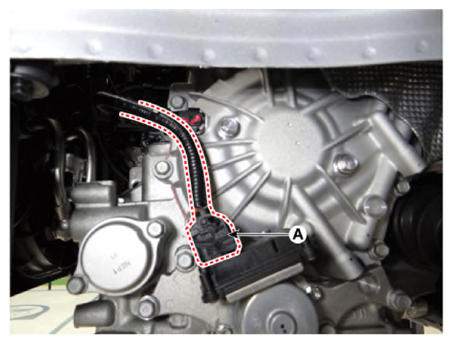

Disconnect the EOP connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the EOP (A) after loosening the mounting bolts.
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
