Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

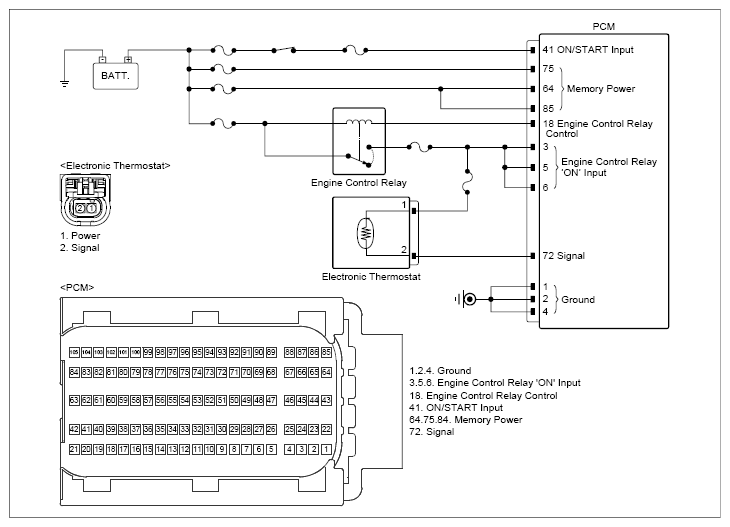

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Thermostat connector | 1 (Power) | Chassis ground | - | B+ |
|
Thermostat connector | 2 (Control) | PCM connector | 72 (Electronic thermostat) | Approx. below 1Ω |
| Thermostat connector | 2 (Control) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
