Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the connectors (A) from the ICU and then remove the wiring mounting clip.
    G13282460Courtesy of KIA MOTORS AMERICA, INC.

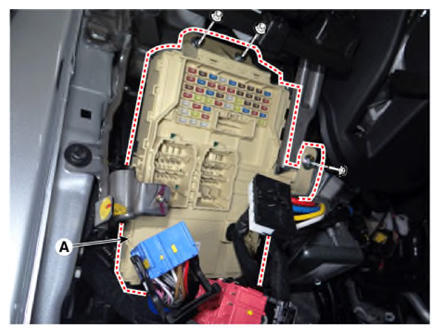

  4. Remove the ICU (A) by loosening the bolt and nuts.
    G13282461Courtesy of KIA MOTORS AMERICA, INC.

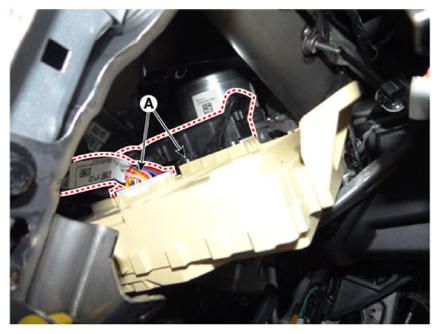

  5. Disconnect the connectors (A) from the ICU and then remove the wiring mounting clip.
G13282462Courtesy of KIA MOTORS AMERICA, INC.
