Multi Fuse

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

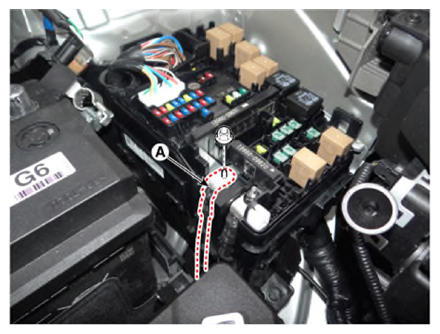

  2. Remove the power cable terminal (A) after loosening the nut.
    G13282444Courtesy of KIA MOTORS AMERICA, INC.

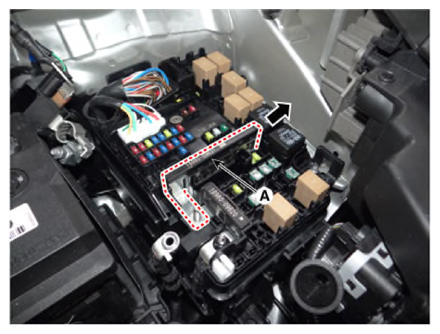

  3. Remove the multi fuse (A) by releasing the hook.
    G13282445Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power cable terminal (A) after loosening the nut.
    G13282446Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the multi fuse (A) by releasing the hook.
    G13282447Courtesy of KIA MOTORS AMERICA, INC.
  6. Check the multi fuses for any damage.
