Inspection of connector by each part
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Check for damage, terminal surge or incomplete connection in each connector.

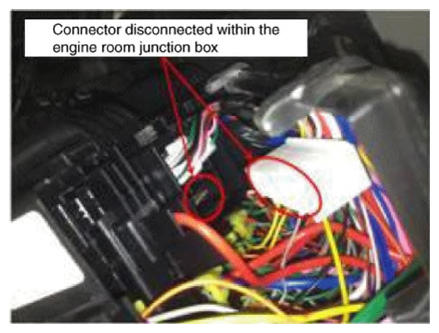

[Engine room junction box]
 Courtesy of KIA MOTORS AMERICA, INC.
|

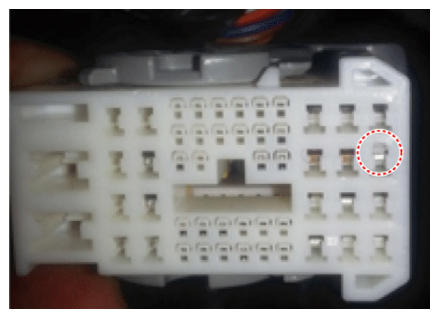

[ABS/VDC control module]
 Courtesy of KIA MOTORS AMERICA, INC.
|
