Fuse inspection

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

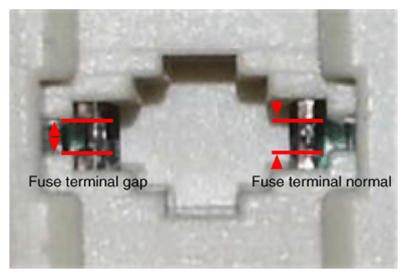

G13281704Courtesy of KIA MOTORS AMERICA, INC.
G13281705Courtesy of KIA MOTORS AMERICA, INC.
