Rear Brake Pads

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
Release the parking brake lever and parking brake cable is loose.
Remove the parking brake cable (B), after removing the clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

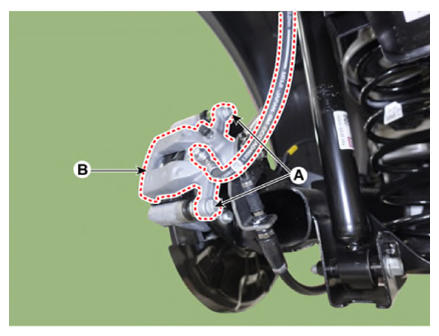

Loosen the guide rod bolts (A) and then hold the caliper housing (B) with wire.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

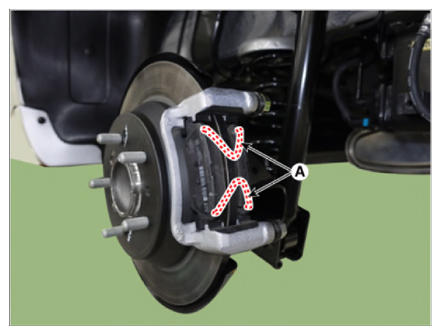

Remove the pad return springs (A).

Courtesy of KIA MOTORS AMERICA, INC.

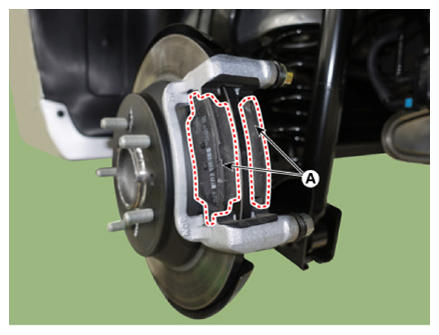

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the pad liner (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Place the return spring, pad liner, inner brake shim, and brake pad all at the same time when replacing the brake pad.
Install the pad liner (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
Install the brake pads (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
Install the pad return springs (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Pad return springs must be replaced with new ones whenever pads are replaced.
- Technicians should be careful not to deform pad return springs.
- When pad return springs are deformed, it may cause improper braking, more fuel consumption.
Rotate the caliper piston clockwise by using a SST (09580-0U000).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
