Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
Release the parking brake lever and parking brake cable is loose.

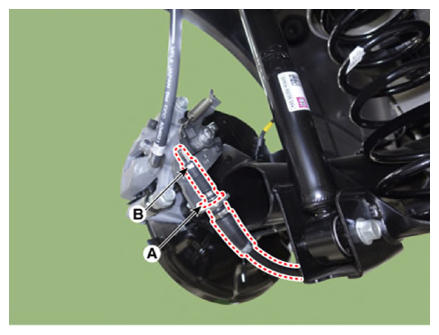

Remove the parking brake cable (B), after removing the clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

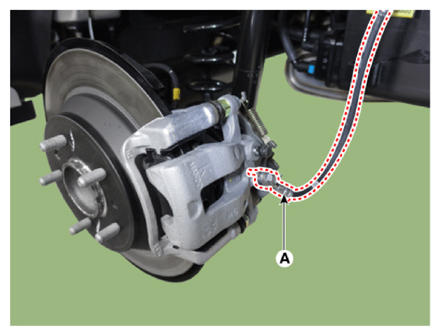

Disconnect the brake hose (A) from the caliper housing by loosening the bolt.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the guide rod bolt (A) and then remove the caliper housing (B).
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the pad return springs (A).

Courtesy of KIA MOTORS AMERICA, INC.

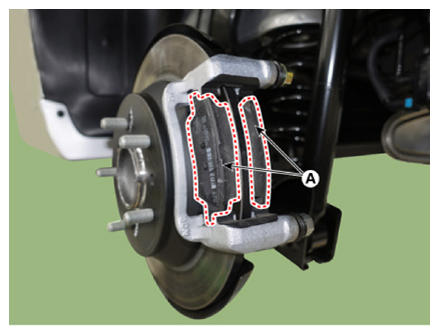

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

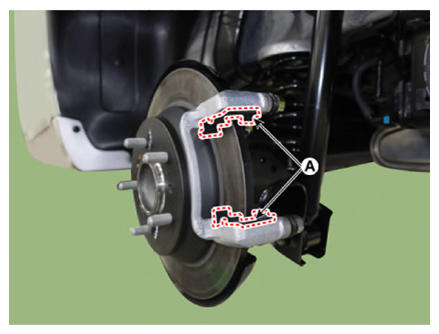

Remove the pad liner (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Place the return spring, pad liner, inner brake shim, and brake pad all at the same time when replacing the brake pad.
Remove the caliper carrier (A) by loosening the bolts.
Tightening torque:

63.5 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

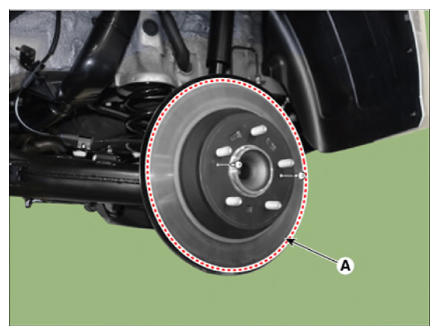

Remove the rear brake disc (A) by loosening the screws.
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
