Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  3. Disconnect the brake switch connector (A).
    G13281692Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the snap pin (A) and clevis pin (B).
    G13281693Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Before installing the pin, apply the grease to the joint pin.
    • Use a new snap pin whenever installing.

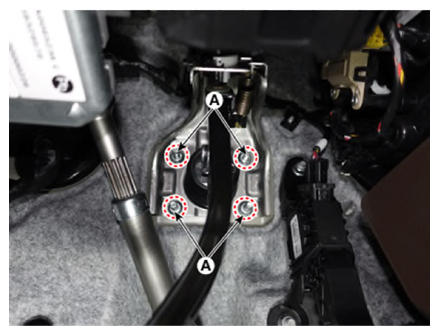

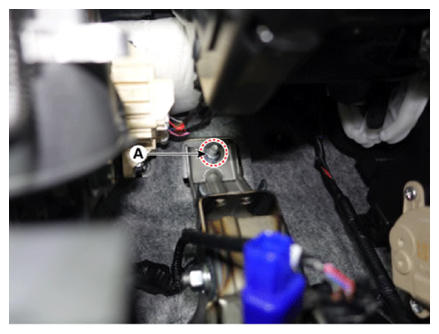

  5. Remove the brake pedal mounting nuts (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

    G13281694Courtesy of KIA MOTORS AMERICA, INC.
    G13281695Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the brake pedal assembly (A).
    G13281696Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal
