Repair Procedures: Installation

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Apply a light coat of engine oil to the oil cooler packing surface (A), and then install the oil cooler(C) with fix bolt (B).
Tightening torque:

50.0 - 55.8 N.m (5.1 - 5.7 kgf.m, 36.8 - 41.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the oil filter (A) with the oil filter wrench (09263-2E000).
Tightening torque:

11.7 - 15.6 N.m (1.2 - 1.6 kgf.m, 8.6 - 11.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

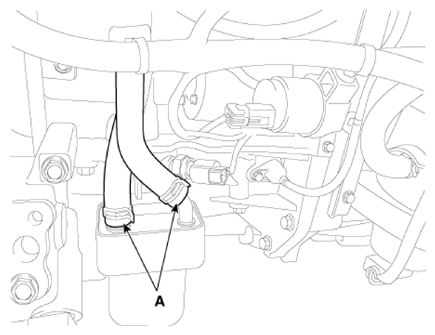

Connect the coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Fill the radiator with coolant and check for leaks.
