Front Seat Heater Unit

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  2. Disconnect the connectors (A) from the front seat heater unit.
    G13282790Courtesy of KIA MOTORS AMERICA, INC.

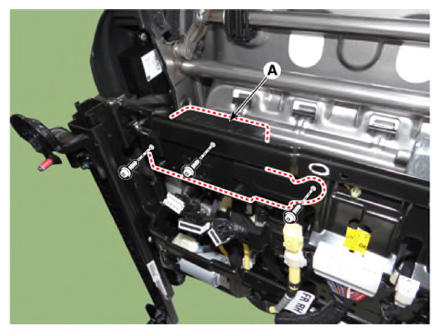

  3. Remove the front seat heater unit (A) by loosening the screws.
    G13282791Courtesy of KIA MOTORS AMERICA, INC.
