Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

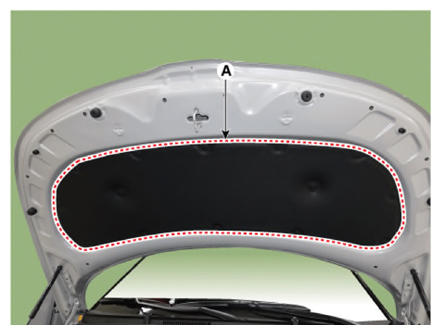

  1. Using a clip remover, detach the clips, and remove the hood insulator pad (A).
    NOTE: Be careful not to damage the hood and body.
    G13281861Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse removal procedure.

    Information

    Replace any damaged clips.
