Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |

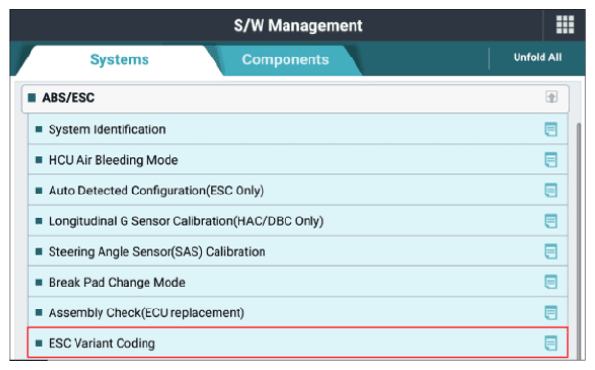

- Variant Coding.
- Ignition "ON".
|
- Connect KDS to "Data Link connector (DLC)".
- Perform
"Variant Coding" in "Vehicle S/W management" with KDS.
|
Fig.1 to 6 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |

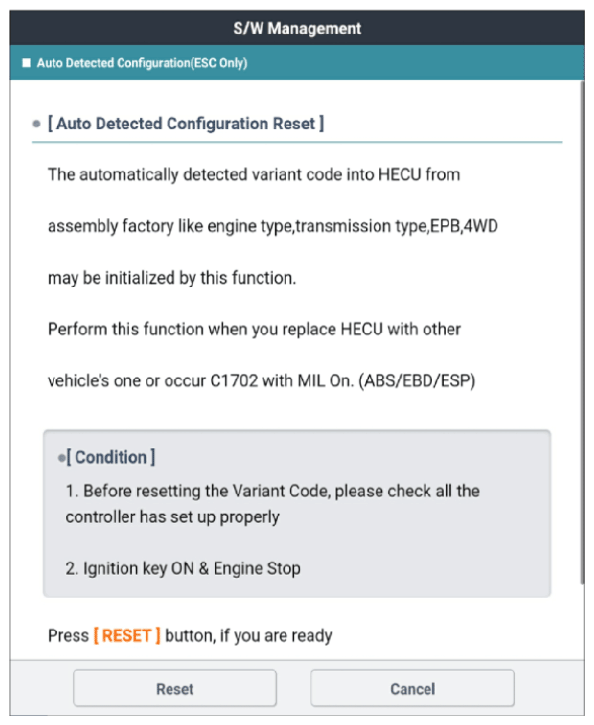

- Auto Detected Configuration Reset (ESP (ESC) Only).
- Ignition "ON".
|
- Connect KDS to "Data Link connector (DLC)".
- Perform
"Auto Detected Configuration Reset (ESP(ESC) Only)" in "Vehicle S/W management" with KDS.
|
Fig.1 to 4 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
