Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| connector | Terminal | connector | Terminal | ||
|
MDPS connector | 1 (power) | Chassis ground | - | B+ |
| MDPS connector | 1 (ON/Start Input) | Chassis ground | - | B+ | |
| MDPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω | |
|

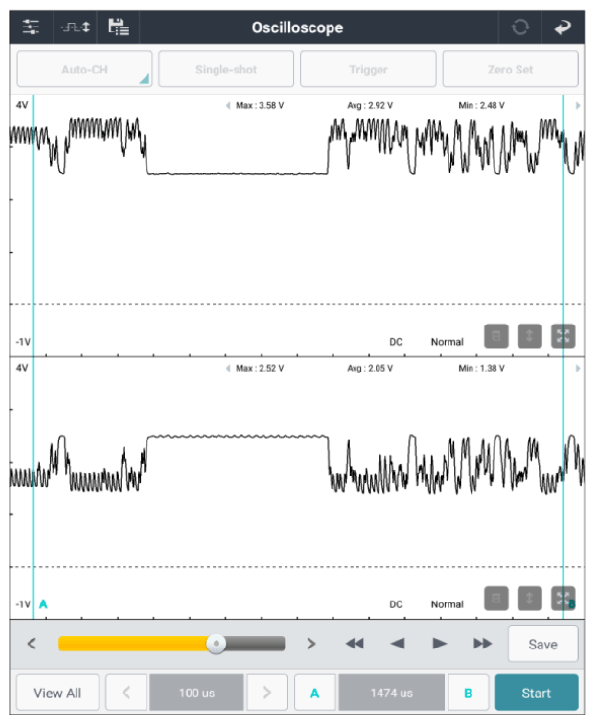

ESC connector | 22 (C-CAN high) | Chassis ground | - | Fig.1 |
| ESC connector | 35 (C-CAN low) | Chassis ground | - | ||
|
ESC connector | 22 (C-CAN high) | ESC connector | 35 (C-CAN low) | Approx. 60Ω |
| MDPS connector | 7 (C-CAN high) | MDPS connector | 8 (C-CAN low) | Approx. 60Ω | |
| ESC connector | 22 (C-CAN high) | MDPS connector | 7 (C-CAN high) | Approx. below 1Ω | |
| ESC connector | 35 (C-CAN low) | MDPS connector | 8 (C-CAN low) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace steering angle sensor (SAS) or MDPS, and then go to "Verification of Repair " procedure.
* In case of replacing SAS or MDPS module, perform following "Vehicle S/W Management" procedures.
CAUTION:
In case of replacing MDPS module, perform following procedures.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Fig.1 to 4 |
