Fuel sender
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) battery terminal.
- Remove the fuel pump assembly.

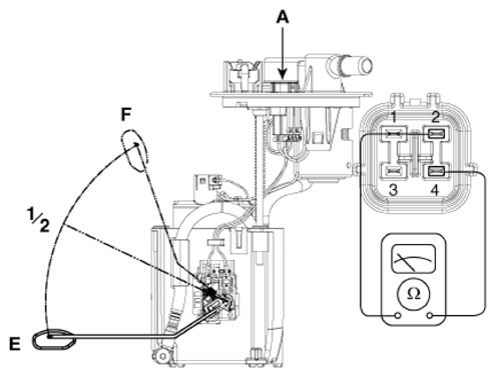

- Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.
Pin No. Description 1 Fuel sender signal 2 Fuel pump (+) 3 Fuel sender ground 4 Fuel pump (-) - Also check that the resistance changes smoothly when the float is moved from "E" to "F".
Position Resistance (Ω) Capacity ( ) E 197.0 - 203.0 4.3 1/2 64.2 - 68.2 26.4 F 6.0 - 10.0 51.3
