Removal & Installation
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

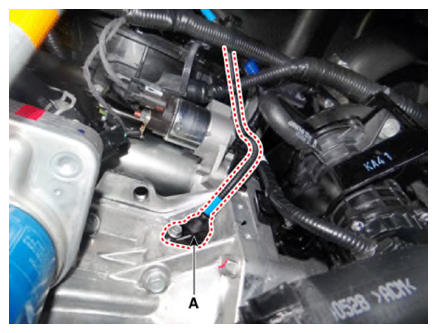

- Disconnect the crankshaft position sensor connector (A).
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the sensor (A) by loosening the mounting bolt.
Crankshaft position sensor mounting bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
- Install in the reverse order of removal.
NOTE:
- Tighten the component with the specified torques.
- If the component has been dropped, inspect if it is damaged before installation.
- Apply the engine oil to the O-ring.
- Insert the sensor in the installation hole and be careful not to damage.
