[Rear Seat Cushion Assembly]

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back assembly [LH].

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

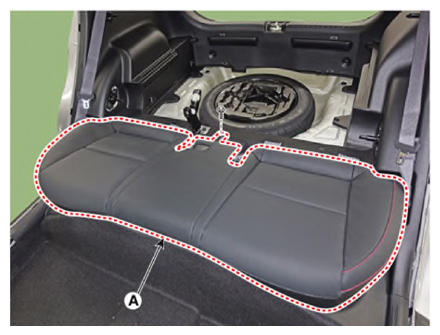

  2. Loosen the mounting bolt, remove the rear seat cushion assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

    G13282234Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the rear seat cushion extension connector (A).
    G13282235Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
