Side Marker

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

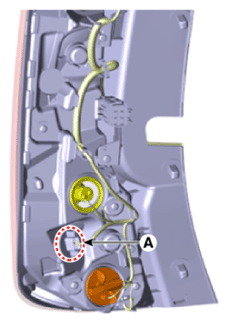

  2. Remove the socket (A) by rotating it in the counterclockwise.
    G13282658Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the bulb (A) from the socket.
    G13282659Courtesy of KIA MOTORS AMERICA, INC.
